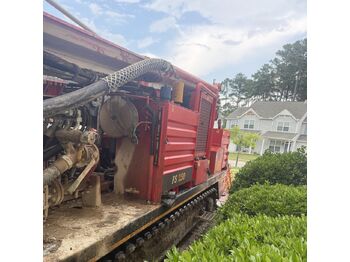

Foreuse Fraste FS250

Used Fraste FS250 Geotechnical Drill Rig for sale.1,274 HoursCaterpillar C-7.1 ACERT, 6-cylinder, bi-turbo, water-cooled. Includes soundproof canopy.Displacement: 7100 cm3Power Output: 275 HP @ 2200 RPMEmissions Compliance: Stage IV - Tier 4 FinalDump Stroke: 40 In.Pipe Length Capacity: 20 ft.Mast Stroke: 25 ft. 3 in.Mast Capacity: 20 tonsPull-up force: 31,500 lbs.Pull-down force: 17,984 lbs.Feed Speeds: Up: 100 FPM / Down: 200 FPMModel: R16D055, 2-speed, integrated air/mud swivel with 2 3/8 in. bore.Speed/Torque Options:1st Gear: 3,900 ft. lbs. @ 200 rpm2nd Gear: 585 ft. lbs. @ 130 rpmMain Winch:Pull Up: 5,000 lbs.Speed: 180 ft./minWireline Winch:Pull Up: 1,800 lbs.Speed: 330 ft./minDouble Hydraulic Clamp:For diameters 2 3/8 in. - 11 in.Adjustable clamping force up to 31,473 lbs.Rotating upper clamp for breakout torque: 9,892 lbs.Automatic Rod Manipulator:Rod storage for 40 rods, 3.5 in. x 20 ft.Oil tank capacity: 144 gallons with 10-micron absolute filters on both pressure and return.WATER INJECTION, MUD PUMP & LUBRICATION SYSTEMBean/FMC E04 Quadruplex Pump:Max flow: 21 GPMMax pressure: 580 PSITibban 3x4 Centrifugal Mud Pump:Max. delivery: 238 GPMMax Pressure: 203 PSICompressor Unit: Integrated with Caterpillar engine with 8 gal. air tank & connectors.Lighting: 5 LED lights: 3 on mast, 1 on stabilizer/control panel, 1 ceiling light. 12,400 lumens total.Hydraulic Power Outlet: Proportional prearrangement with quick-connects, max. flow: 11Hydraulic slewing (180°) with telescopic arm (stroke: 700mm), designed for integration with the main winch.
