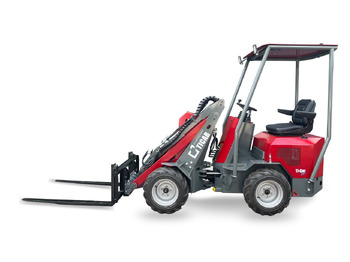

Crédit-bail TICAB Multifunctional Mini Loader, Compact Wheel Loader, Manufacturer!

We offer the TI-CAR 125/225 as a versatile work machine. The stable boom makes it easy and safe to lift loads with pallet forks. The adjustable steering wheel and comfortable seat suspension reduce fatigue from travelling. The dual-pedal steering system allows you to control the movement with amazing precision, even with demanding attachments and difficult terrain.

The TI-CAR is an effective tool for a variety of jobs in construction, agriculture, municipal services, with alternating loading, snow removal, soil moving, transporting goods, and levelling.

Technical characteristics:

Engine - Kubota (Japan), model - 1105; cylinders - 3,

or Yanmar (Japan), model 3TNM72

Engine power - 18 kW/25 hp,

Cylinder capacity (cm³): 784-1120

Cooling system - liquid;

Hydraulics - HANSA (Italy),

Battery (V-Ah): 12-65

Generator (A): 40

Maximum torque (Nm): 72-77.6

Operating speed of the engine, rpm - 3000

Maximum engine speed without load - 3600 rpm;

Maximum lifting capacity to a height of 50 cm, kg-800-900

Tipping load with a straight frame, kg-480-780

Tipping load with a bent frame, kg-350-500

Boom lift time, sec-2.8

Boom lowering time, sec-2.1

Loader weight, kg 1000-2550

Maximum lifting height, mm -2100-2860

Boom self-levelling - for model 225

Operating volumes:

Cooling system, (l): 3.1

Engine oil, (l): 5.11

Fuel type - diesel (fuel tank - 18 l)

Hydraulic tank (l): 44

Total capacity of the hydraulic system (l): 48.

Driving characteristics:

Travel speed (km/h)-0-13,

Breaking angle-56°,

Turning radius in place-1.63 m

Boom lift with tipping bucket 210 cm.

Wheelbase:

Outer wheel diameter (inch) - 23"

Inner disc diameter (inch) - 12"

Tyre width (inch) - 8.5"

Available in stock!!
